Qhov loj dua:
1. Nruab siab thiab tsis tu ncua ntau lawm.
2. Tswj los ntawm kev tshuaj ntsuam thiab PLC, yooj yim rau kev khiav lag luam.
3. Cov zis tawm thiab txuag hluav taws xob.
4. Ceev cov kab npauj npaim.
5. Kev ruaj ntseg zoo thiab tsis ua hauj lwm dua.
Kev Qhia:
1.Qhov cav no siv PLC thiab kov npo, kev pub noj, kev siv hluav taws xob, kev tswj qhov kub thiab txias, cov khoom siv tswj kom pom tau zoo thiab tsis tu ncua.
2. Kev siv hluav taws xob thiab cov khoom siv tiv thaiv hauv tsev yuav ua kom muaj qhov sib dhos ntawm cov hlaws dej, uas ua rau cov hlaws daig thiab ua kom qhov siab khov tsis pub dhau 2%.
3. Nyiv Nyiv siab txo lub valve tswj ntawm lub zog ceev ntawm lub chamber, uas ua kom pom tseeb qhov siab ntawm lub plhaub tas mus li thiab qhov sib txeeb ntawm qhov kub zoo, uas ceev cov khoom sib npaug sib npaug thiab tiv thaiv cov hlaws agglomerate vim tias qhov kev kub ntawm qhov tsis zoo.
4. Cov khoom siv uas them lub tshuab tuaj yeem ua rau kev txhim kho kom tsawg dua qub thiab txo cov haujlwm khov kho.
5. Lub kaw qhov ruaj ruaj foaming thawv muaj kev sov siab ua haujlwm siab. Nws tuaj yeem txuag tau ntau tshaj li 50% zog piv rau cov kev ua ntej mus txuas ntxiv.
6. Tshem tawm kev rho tawm los ntawm kev siv ua ntej, uas tuaj yeem lim tau thiab zuaj cov pob khoom siv thiab thauj cov khoom siv foamed rau silos.
7. Feem ntau ntawm cov khoom tseem ceeb yog lub ntiaj teb nto moo hom, nrog kev ua haujlwm zoo, kev ruaj khov, kev pabcuam ntev lub neej thiab kev txo nqi tsawg.
Nco Ntsoov:
Kev siv tshuaj tua pa ntawm cua thiab cov pa compressed yog xaiv tau
KHOOM | LWP-500 | LWP-1100 | LWP-1400 | |
Expansion Chamber | Ncauj | DN500 | DN1100 | DN1400 |
Volume | 0.14m 3 | 1.4m3 | 2.1 | |
Lub Cuab Yeej Siv | 0.1m3 | 1.0m 3 | 1.5 | |
Chav | Nkag | DN25 | DN50 | DN50 |
Khoom Noj | 0.5-0.7kg / voj voog | 6-8kg / voj voog | 8-10kg / lub voj voog | |
Siab | 0.6-0.8Mpa | 0.6-0.8Mpa | 0.6-0.8Mpa | |
Compressed Cua | Nkag | DN20 | DN25 | DN50 |
Khoom Noj | 0.2-0.3 m 3 / voj voog | 0.5-0.6 m 3 / voj voog | 0.5-0.8 m 3 / voj voog | |
Siab | 0.5-0.8Mpa | 0.5-0.8Mpa | 0.5-0.8Mpa | |
Kua | Upper Ntws Dej | DN65 | DN100 | DN125 |
Cia Qhov Chaw Nres Ntoo | DN20 | DN100 | DN100 | |
Cov khoom siv xa cov yeeb nkab | DN150 | DN150 | DN200 | |
Peev Xwm | 12g / l 85kg / h | 10.5 g / l 350kg / h | 10.5 g / l 450kg / h | |
18g / l 120kg / h | 15g / l 580kg / h | 15g / l 750kg / h | ||
25g / l 175kg / h | 20g / l 800kg / h | 20g / l 950kg / h | ||
50g / l 280kg / h | 30g / l 950kg / h | 30g / l 1200kg / h | ||
Kev Txuam Ntsuas / Lub Hwjchim | 9.5KW | 19.5KW | 22.5KW | |
Expanded Census | 12-120 kg / m3 | 10-40kg / m3 | 10-40kg / m3 | |
Density Tolerance | <±> | <> | <> | |
Tag Nrho Dimension | 2900 * 4500 * 5900 (hli) | 2900 * 4500 * 5900 (hli) | 6500 * 3500 * 4500 (hli) | |
Nyhav | 1500kg | 3200kg | 4500kg | |

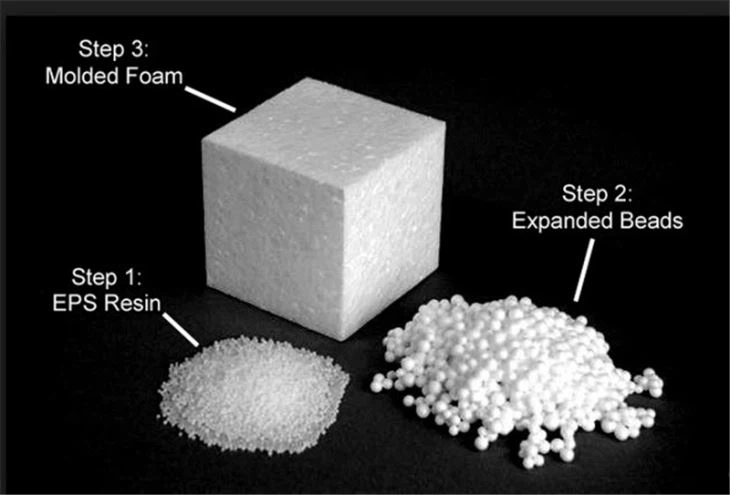

Finishied cov khoom ntawm EPS hlwv Kev Ua Tshuab

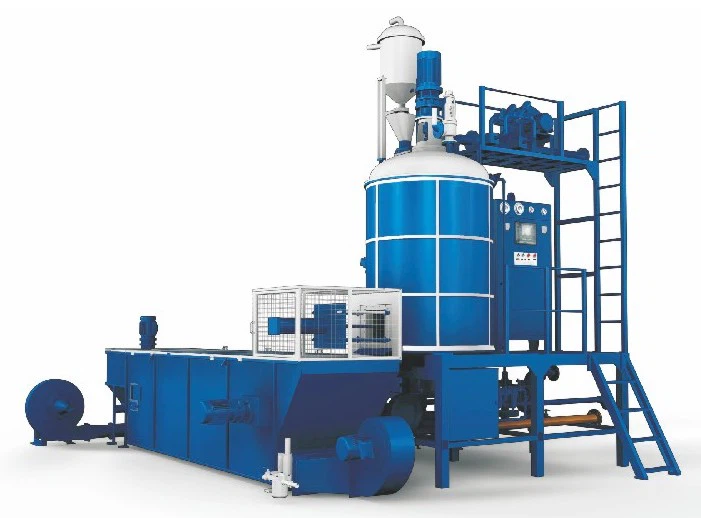

EPS hlwv cav ua tshuab dav siv rau kev siab ceev thiab middium peev EPS npuav hlaws cov kab ntau lawm.
LONGWELL, nrog dhau 20 xyoo dhau los, yog ib lub zoo tshaj plaws zoo zoo eps ua npuas bach pre-expander tuam ntxhab thiab cov neeg nyob hauv Suav teb. Nrog kev pab los ntawm cov khoom siv thiab cov cuab yeej siv siab, tag nrho peb cov khoom muaj nqi zoo thiab tsis tshua muaj nqes. Txais tos mus yuav cov pheej yig customized tshuab ntawm peb lub Hoobkas.
Cim npe nrov: eps hlaws ua tshuab Hoobkas, Tuam Tshoj, Hoobkas, tuam ntxhab, cov khoom lag luam, kho, tsis muaj nqi, yuav, pheej yig
