Qhov ua ntej:
1.Controlled los ntawm PLC thiab kov npo, yooj yim rau kev khiav lag luam.
2.Whawv lub tshuab nqus tsev ua rau khoom ceev ceev thiab txias, thaum uas tsis muaj dej txaus.
3.Txhua ntau lub tshuab ntaus ntawv ntau, nws tuaj yeem ua txhua yam khoom nyuaj-rau-tsib-pwm.
Yam ntxwv:
1.Qhov cav no siv PLC thiab cov npo kov, cov txheej txheem advanced molding thiab tuaj yeem tsim ntau yam qauv ntawm EPS cov khoom.
2.Qhov cav no tuaj yeem muab ntau hom khoom ua npuas sib txawv nrog cov qis qis, qis ceev ceev thiab txo qis zog.
3.Yog muaj plaub hom kev khiav haujlwm (automatic, semi-automatic, pause-startup thiab manual operation) nrog kev tiv thaiv kab mob tiv thaiv kom ruaj ntseg zoo.
4.Qhov cav no muaj microcomputer tswj thiab kov zaub screen. Nws tuaj yeem ua haujlwm zoo nyob rau hauv kev tswj hwm kev tswj hwm computer thiab kev tswj hwm nrog kev sib koom tes nrog kev lag luam. Muaj peev xwm ntawm kev lag luam thiab yooj yim rau kev tswj hwm, nws tuaj yeem txo qhov kev siv zog.
5.Qhov cav no siv cov hluav taws xob sib txuas nrog hluav taws xob thiab kev sib txuas hydraulic, uas ua rau lub zog ceev ceev, txo kom lub zog siv zog thiab txo cov kev ua qoob loo.
6. Hydraulone-pwm hom.
Nco Ntsoov:
1.Muaj plated coated nrog Zinc yog xaiv tau
2. Qhov ntev ntawm qhov siab ntawm qhov siv tshuab yog xaiv tau
Yam khoom | LWS-1200B | LWS-1400B | LWS-1600B | LWS-1750B | LWS-2200B | |
Pwm Dimension (hli) | 1200 * 1000 | 1400 * 1200 | 1600 * 1350 | 1750 * 1450 | 2200 * 1350 | |
Max Ua Rau Pej Xeem (hli) | 1050 * 850 * 350 | 1200 * 1050 * 350 | 1400 * 1200 * 350 | 1550 * 1300 * 350 | 200 * 1200 * 350 | |
Mob Stroke (hli) | 150 ~ 1350 | 150 ~ 1350 | 150 ~ 1350 | 150 ~ 1350 | 150 ~ 1350 | |
Chav | Nkag | DN65 | DN80 | DN100 | DN100 | DN100 |
Khoom Noj | 5 ~ 7kg / voj voog | 6 ~ 9kg / voj voog | 7 ~ 10kg / voj voog | 8 ~ 12kg / voj voog | 12 ~ 15kg / voj voog | |
Siab | 0.5 ~ 0.7Mpa | 0.5 ~ 0.7Mpa | 0.5 ~ 0.7Mpa | 0.5 ~ 0.7Mpa | 0.5 ~ 0.7Mpa | |
Dej Txias | Nkag | DN65 | DN80 | DN80 | DN80 | DN80 |
Khoom Noj | 45 ~ 130kg / lub voj voog | 50 ~ 150kg / voj voog | 55 ~ 170kg / lub voj voog | 55 ~ 180kg / voj voog | 60 ~ 190kg / lub voj voog | |
Siab | 0.3 ~ 0.5Mpa | 0.3 ~ 0.5Mpa | 0.3 ~ 0.5Mpa | 0.3 ~ 0.5Mpa | 0.3 ~ 0.5Mpa | |
Compressed Cua | Nkag | DN40 | DN50 | DN50 | DN50 | DN50 |
Khoom Noj | 1.5m 3 / voj voog | 1.8 m3 / voj voog | 2 m3 / voj voog | 2 m3 / voj voog | 2.5 m3 / voj voog | |
Siab | 0.5 ~ 0.7Mpa | 0.5 ~ 0.7Mpa | 0.5 ~ 0.7Mpa | 0.5 ~ 0.7Mpa | 0.5 ~ 0.7Mpa | |
Lub tshuab nqus tsev twj tso kua mis | 165m3 / h | 230m3 / h | 280m3 / h | 280m3 / h | 280m3 / h | |
Lub voj voog sijhawm | 60 ~ 100s | 70 ~ 140s | 80 ~ 150s | 80 ~ 150s | 100 ~ 150s | |
Lub zog | 10.6kw | 14.1kw | 16.5kw | 16.5kw | 20kw | |
Zuag Qhia Tag Nrho (hli) | 4500 * 1840 * 2900 | 4600 * 2140 * 3100 | 5000 * 2300 * 3400 | 5000 * 2450 * 3500 | 5000 * 3000 * 3500 | |
Tshuab Luj | 4500kg | 5000kg | 5800kg | 6200kg | 7000kg | |

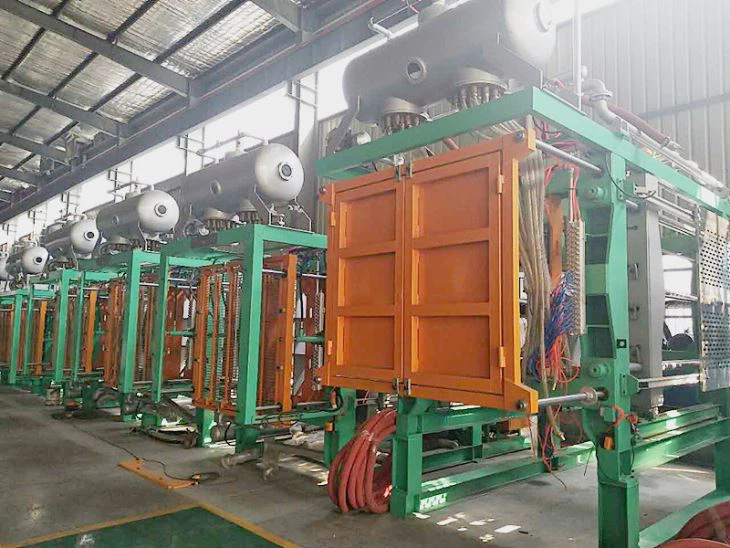

Kev Siv Lub Tshuab Nqus Tsev EPS Daim Moulding Tshuab
Nqus EPS Hom Moulding Tshuab Rau EPS Box Pob Khoom Hniav Davis ICF yog siv los ua EPS ua npuas ncauj ntses lub thawv ... EPS npuas npau rau kev sib tshuam ... EPS ICF blocks rau kev tsim kho tsev ... EPS ua npuas ncauj kev kho kom zoo nkauj cornice ceilling ...
LONGWELL, nrog dhau 20 xyoo dhau los, yog ib qho loj tshaj plaws nws pib moulding tshuab nrog lub tshuab nqus tsev rau eps lub thawv khoom ntim decorations icf tuam txhab thiab cov khoom lag luam nyob hauv Suav teb. Nrog kev pab los ntawm cov khoom siv thiab cov cuab yeej siv siab, tag nrho peb cov khoom muaj nqi zoo thiab tsis tshua muaj nqes. Txais tos mus yuav cov pheej yig customized tshuab ntawm peb lub Hoobkas.
