LONGWELL, nrog dhau 20 xyoo kev, yog ib lub longwell zoo nqe high density eps ntim tshuab kev muag khoom manufacturers thiab cov neeg muag khoom nyob rau hauv Suav teb. Nrog kev pab los ntawm cov khoom siv thiab cov cuab yeej siv siab, tag nrho peb cov khoom muaj nqi zoo thiab tsis tshua muaj nqes. Txais tos mus yuav cov pheej yig customized tshuab ntawm peb lub Hoobkas.
Basic Info
Qauv TSIS MUAJ: LWB-1600B
Raw Khoom: EPS
Automation: Tsis siv neeg
Cov ntawv pov thawj: CE
Layout: Kab rov tav
Ciaj uas muag tawm: Ntiaj teb
Pwm Dimension: 1600 * 1350
Kev Ua Tau: Kev Ua Zoo Tshaj
Xim: Selectable
Kev Thauj Khoom: Cov Ntoo Rooj Ntoo
Keeb kwm: Suav teb
Hom: EPS Npuas Tshuab
Computerized: PLC
EPS Tshuab: Hom Moulding Tshuab
Driven hom: Hydraulic \ Fais
Daim Ntawv Thov: EPS Box, Ntim
Chav Siv: 7-10 kg / voj voog
Lub npe: Longwell
Specification: CE
HS Code: 84778000

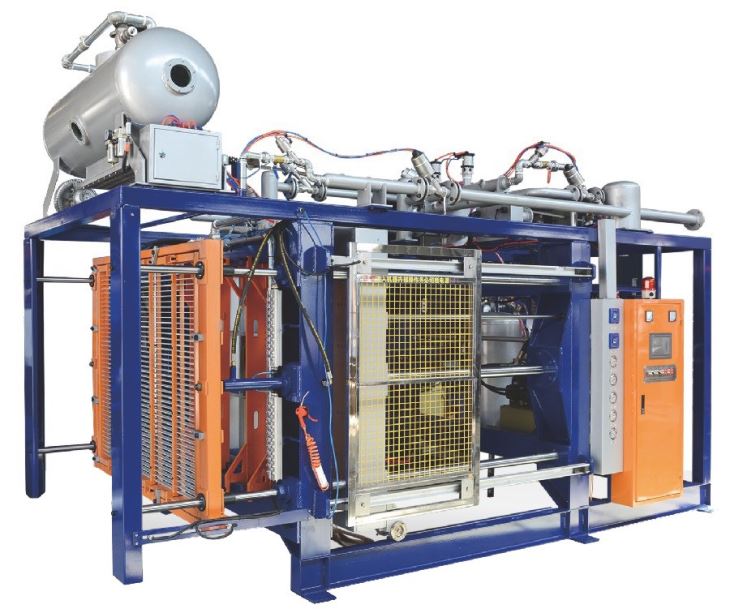

Khoom Piav Qhia ntawm Longwell Good Nqe High Density EPS Ntim Tshuab Rau Muag
1. Nta
Lub tshuab siv PLC thiab kov tshuaj ntsuam nrog cov txheej txheem advanced molding tuaj yeem tsim ntau yam qauv ntawm EPS cov khoom, lub tshuab nqus tsev thiab hydraulic muaj peev xwm nce molding ceev thiab txo lub sij hawm kom txias.Qhov zoo li nram no:
1) Lub tshuab no siv cov PLC thiab cov npo kov, cov txheej txheem mould siab heev thiab tuaj yeem tsim ntau yam qauv ntawm EPS cov khoom.
2) Lub cav no muaj peev xwm muab ntau hom khoom ua npuas ntau nrog cov khoom qis qis, qis ceev ceev thiab txo qis zog.
3) Muaj plaub hom kev khiav hauj lwm (automatic, semi-automatic, pause-startup thiab phau ntawv ua haujlwm) nrog kev tiv thaiv kab mob tiv thaiv kom ruaj ntseg.
4) Lub tshuab no muaj microcomputer tswj thiab kov zaub screen. Nws tuaj yeem ua haujlwm zoo nyob rau hauv kev tswj hwm kev tswj hwm computer thiab kev tswj hwm nrog kev sib koom tes nrog kev lag luam. Muaj peev xwm ntawm kev lag luam thiab yooj yim rau kev tswj hwm, nws tuaj yeem txo qhov kev siv zog.
5) Qhov tshuab no siv cov hluav taws xob thiab kev sib txuas hydraulic siab, uas ua rau lub zog ceev, ua kom lub zog siv tau zoo dua thiab txo cov huab cua phem.
6) Mechanic de-mold mode.
2.
Cov Ntaub Ntawv Kev | ||||
Yam khoom | LWS-1200B | LWS-1400B | LWS-1600B | LWS-1750B |
Pwm loj (hli) | 1200 * 1000 | 1400 * 1200 | 1600 * 1350 | 1760 * 1460 |
Ua kom loj (hli) | 1050 * 850 * 350 | 1200 * 1050 * 350 | 1420 * 1200 * 350 | 1550 * 1200 * 350 |
Stoke (hli) | 150-1350 | 150-1350 | 150-1350 | 150-1350 |
Mob nyuab siab ceev (hli / ob) | 210 | 190 | 140 | 140 |
Chav nkag | DN65 | DN80 | DN100 | DN100 |
Dej nkag | DN65 | DN80 | DN80 | DN80 |
Compressed cua nkag | DN40 | DN50 | DN50 | DN50 |
Lub tshuab nqus tsev twj (m3 / h) | 165 | 230 | 280 | 280 |
Lub hwj chim (kw) | 10.6 | 14.1 | 14.5 | 16.5 |
Tshuab loj (hli) | 4500 * 1840 * 2900 | 4600 * 2140 * 3100 | 5000 * 2300 * 3400 | 5000 * 2450 * 3500 |
Qhov hnyav (kg) | 4500 | 5000 | 5800 | 670 |
3. Daim Ntawv Thov
Ntau yam kev siv hauv cov khoom ua liaj ua teb thiab elctronic ntim. Xws li lub thawv ntses. ICF. Ntxig, qhov kho kom zoo nkauj. Kaus mom hlau. Qauv. lwm yam zoo li
4. Ntim & Xa ntawv
Ntim: txheem exporting pob
Shipping chaw nres nkoj: shanghai / ningbo
5. Peb tuaj yeem muab cov kev pab no
(1) Cov neeg siv tus nqi, lav khoom zoo thiab teb cov lus nug cov lus nug txhua sij hawm thiab nyob qhov twg.
(2) Customizing cov cav tov raws li cov neeg xav nug, xws li kev tsim, txawv hom khoom, xim txawv, muaj nuj nqi ntxiv, thiab lwm yam.
(3) Cov kws tshawb fawb mus rau cov neeg ua hauj lwm 'lub koom haum nyob rau lub sij hawm rau kev teeb tsa, kev cob qhia thiab kev sim khoom.
(4) Ntau qhov chaw tshwj xeeb raug muab rau cov neeg tau txais kev pab dawb kom paub tseeb tias lub Hoobkas ua haujlwm tsis tas yuav nres.
(5) 1 xyoo dawb warranty, Kev pab lub neej tau txais kev pab.
Cim npe nrov: longwell zoo nqe siab ntom eps ntim tshuab kev muag, Tuam Tshoj, Hoobkas, manufacturers, lag luam, customized, tsawg tus nqi, yuav, pheej yig
